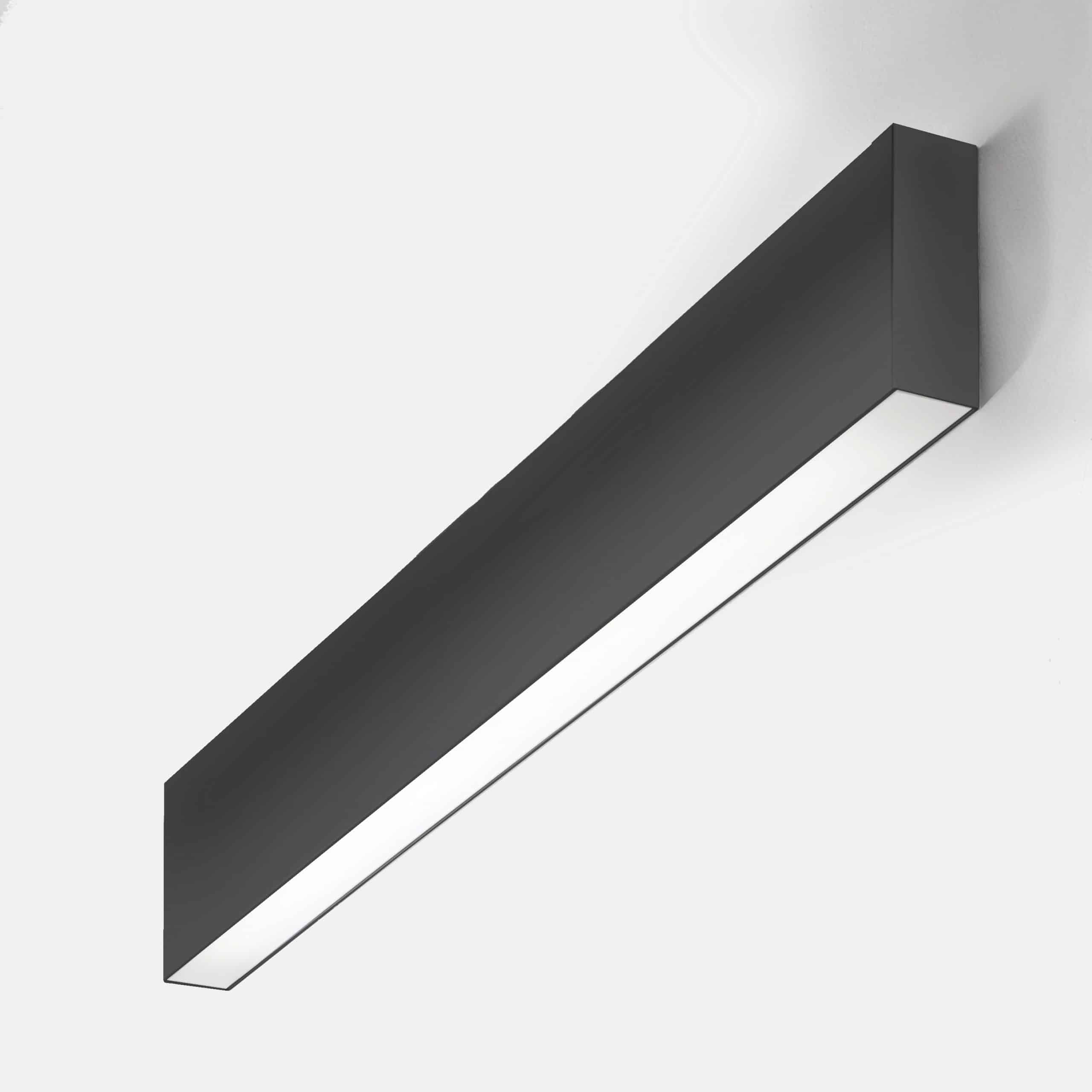

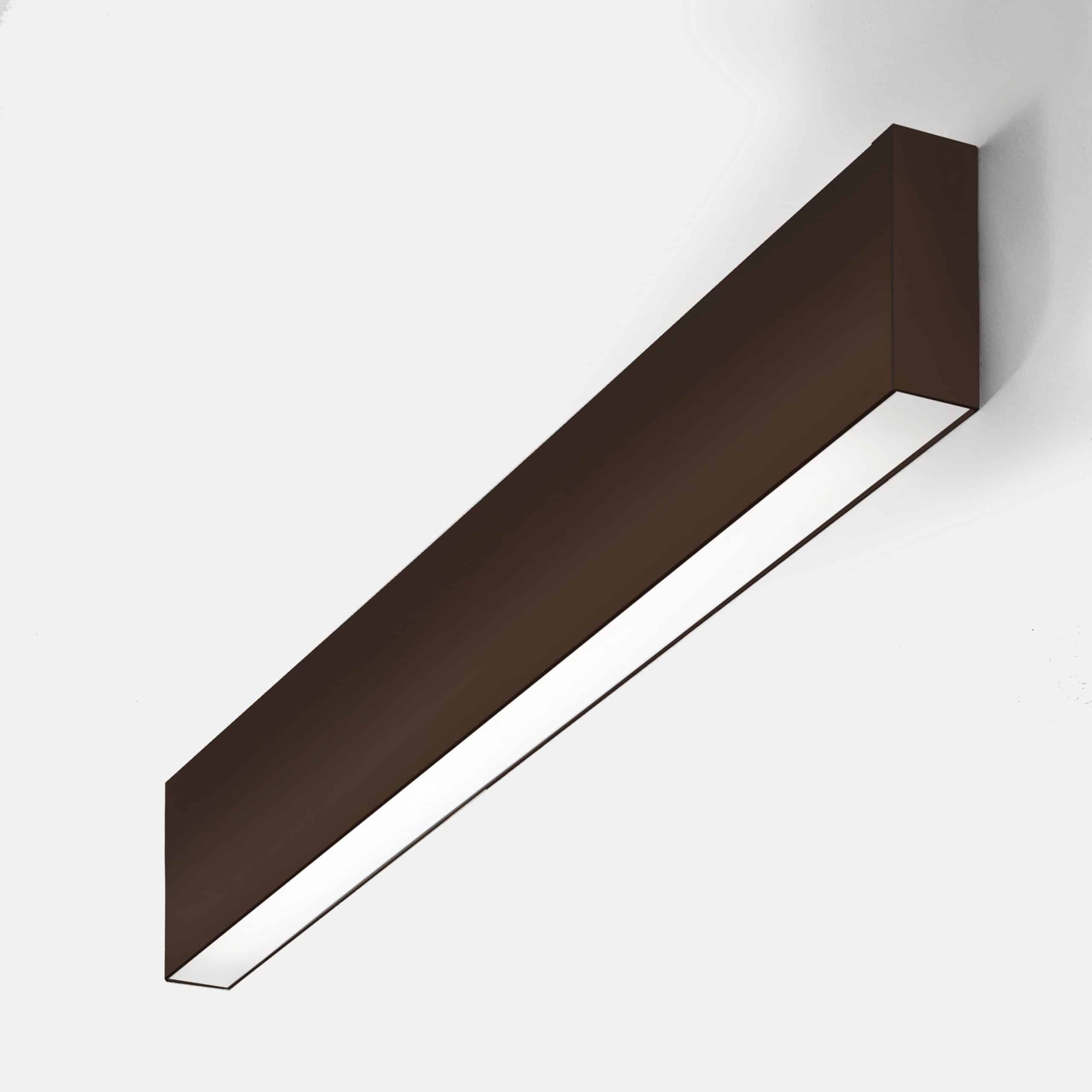

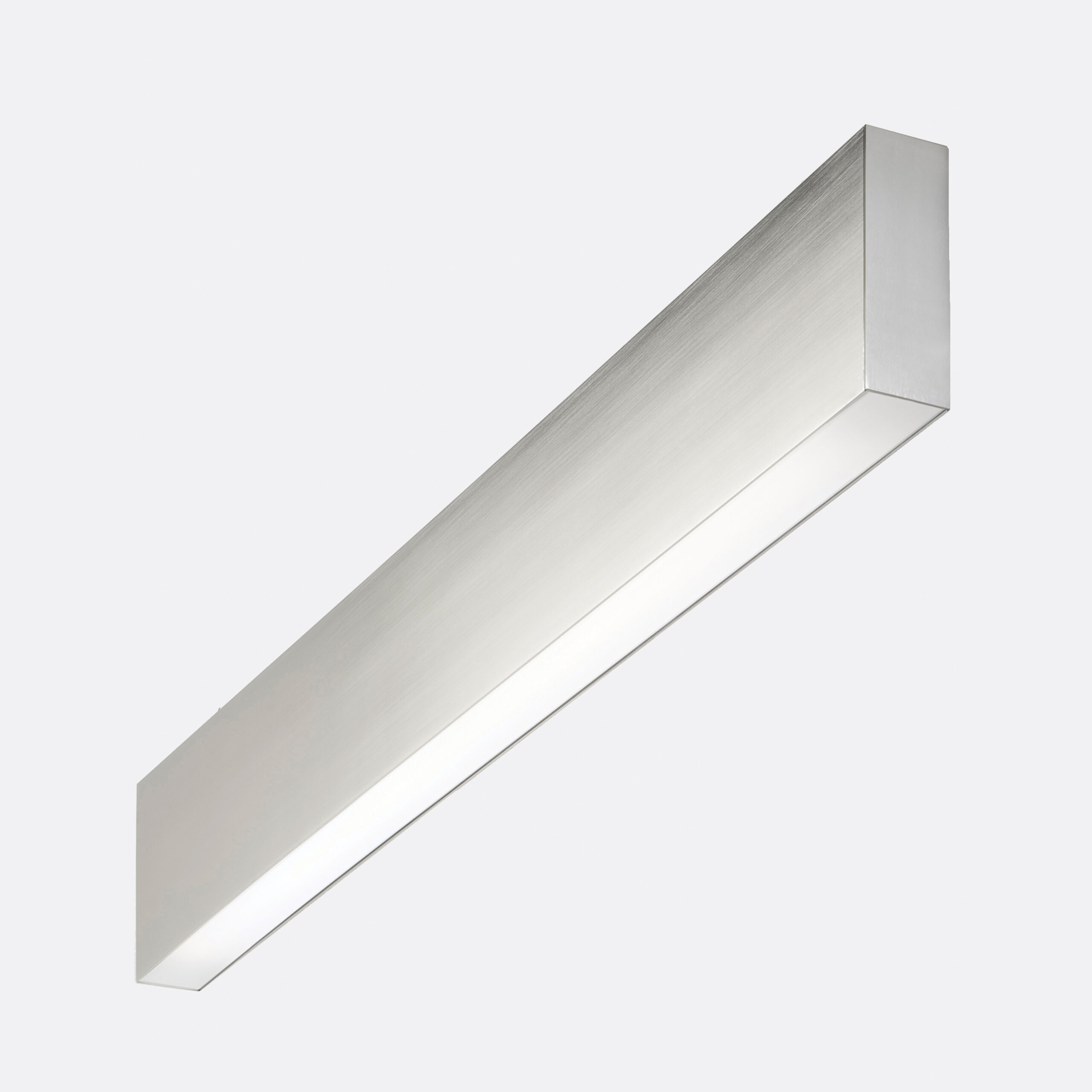

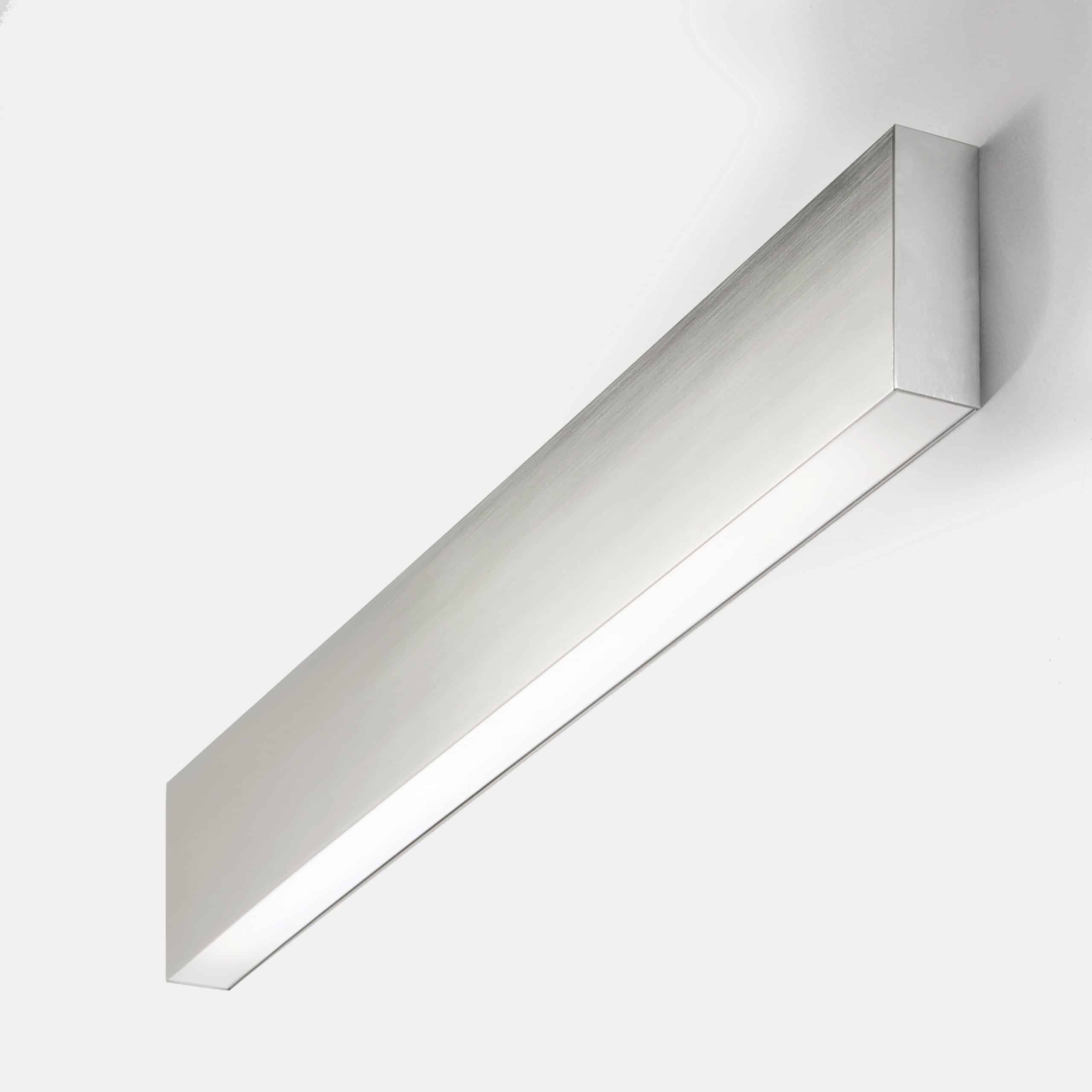

File H wall double emission

File H wall double emission

Serie di apparecchi a sospensione e a parete per illuminazione diretta e indiretta diffusa, per sorgenti lineari LED. Alimentazione elettronica integrata 50/60Hz 230/240V. Corpo in estruso di alluminio 120x40mm. Finitura verniciata o anodizzata. Completi di cavi di sospensione in acciaio con sistema di regolazione micrometrica e cavo di alimentazione l. 2000 mm., testate di chiusura laterali con sistema Light Proof… read more

Light source Code Power Color temp. Lumen CRI Lens Protocol Dim
F1H50.827P
2x12,8W
2700K
3968
>90
 Opal polycarbonate diffuser On/Off L22.83"
F1H50.827PD
2x12,8W
2700K
3968
>90
 Opal polycarbonate diffuser Dimmable Dali L22.83"
F1H50.827X
2x12,8W
2700K
3968
>90
 Microprismatic diffuser On/Off L22.83"
F1H50.827XD
2x12,8W
2700K
3968
>90
 Microprismatic diffuser Dimmable Dali L22.83"
F1H50.830P
2x12,8W
3000K
3968
>90
 Opal polycarbonate diffuser On/Off L22.83"
F1H50.830PD
2x12,8W
3000K
3968
>90
 Opal polycarbonate diffuser Dimmable Dali L22.83"
F1H50.830X
2x12,8W
3000K
3968
>90
 Microprismatic diffuser On/Off L22.83"
F1H50.830XD
2x12,8W
3000K
3968
>90
 Microprismatic diffuser Dimmable Dali L22.83"
F1H50.840P
2x12,8W
4000K
4088
>90
 Opal polycarbonate diffuser On/Off L22.83"
F1H50.840PD
2x12,8W
4000K
4088
>90
 Opal polycarbonate diffuser Dimmable Dali L22.83"
F1H50.840X
2x12,8W
4000K
4088
>90
 Microprismatic diffuser On/Off L22.83"
F1H50.840XD
2x12,8W
4000K
4088
>90
 Microprismatic diffuser Dimmable Dali L22.83"
F1H50.8TWP
2x12,8W
Tunable White

>90
 Opal polycarbonate diffuser On/Off L22.83"
F1H50.8TWX
2x12,8W
Tunable White

>90
 Microprismatic diffuser On/Off L22.83"
F1H51.827P
2x19,2W
2700K
5952
>90
 Opal polycarbonate diffuser On/Off L33.86"
F1H51.827PD
2x19,2W
2700K
5952
>90
 Opal polycarbonate diffuser Dimmable Dali L33.86"
F1H51.827X
2x19,2W
2700K
5952
>90
 Microprismatic diffuser On/Off L33.86"
F1H51.827XD
2x19,2W
2700K
5952
>90
 Microprismatic diffuser Dimmable Dali L33.86"
F1H51.830P
2x19,2W
3000K
5952
>90
 Opal polycarbonate diffuser On/Off L33.86"
F1H51.830PD
2x19,2W
3000K
5952
>90
 Opal polycarbonate diffuser Dimmable Dali L33.86"
F1H51.830X
2x19,2W
3000K
5952
>90
 Microprismatic diffuser On/Off L33.86"
F1H51.830XD
2x19,2W
3000K
5952
>90
 Microprismatic diffuser Dimmable Dali L33.86"
F1H51.840P
2x19,2W
4000K
6130
>90
 Opal polycarbonate diffuser On/Off L33.86"
F1H51.840PD
2x19,2W
4000K
6130
>90
 Opal polycarbonate diffuser Dimmable Dali L33.86"
F1H51.840X
2x19,2W
4000K
6130
>90
 Microprismatic diffuser On/Off L33.86"
F1H51.840XD
2x19,2W
4000K
6130
>90
 Microprismatic diffuser Dimmable Dali L33.86"
F1H52.827P
2x25,6W
2700K
7936
>90
 Opal polycarbonate diffuser On/Off L44.88"
F1H52.827PD
2x25,6W
2700K
7936
>90
 Opal polycarbonate diffuser Dimmable Dali L44.88"
F1H52.827X
2x25,6W
2700K
7936
>90
 Microprismatic diffuser On/Off L44.88"
F1H52.827XD
2x25,6W
2700K
7936
>90
 Microprismatic diffuser Dimmable Dali L44.88"
F1H52.830P
2x25,6W
3000K
7936
>90
 Opal polycarbonate diffuser On/Off L44.88"
F1H52.830PD
2x25,6W
3000K
7936
>90
 Opal polycarbonate diffuser Dimmable Dali L44.88"
F1H52.830X
2x25,6W
3000K
7936
>90
 Microprismatic diffuser On/Off L44.88"
F1H52.830XD
2x25,6W
3000K
7936
>90
 Microprismatic diffuser Dimmable Dali L44.88"
F1H52.840P
2x25,6W
4000K
8174
>90
 Opal polycarbonate diffuser On/Off L44.88"
F1H52.840PD
2x25,6W
4000K
8174
>90
 Opal polycarbonate diffuser Dimmable Dali L44.88"
F1H52.840X
2x25,6W
4000K
8174
>90
 Microprismatic diffuser On/Off L44.88"
F1H52.840XD
2x25,6W
4000K
8174
>90
 Microprismatic diffuser Dimmable Dali L44.88"
F1H52.8TWP
2x25,6W
Tunable White

>90
 Opal polycarbonate diffuser On/Off L44.88"
F1H52.8TWX
2x25,6W
Tunable White

>90
 Microprismatic diffuser On/Off L44.88"
F1H53.827P
2x32W
2700K
9920
>90
 Opal polycarbonate diffuser On/Off L55.91"
F1H53.827PD
2x32W
2700K
9920
>90
 Opal polycarbonate diffuser Dimmable Dali L55.91"
F1H53.827X
2x32W
2700K
9920
>90
 Microprismatic diffuser On/Off L55.91"
F1H53.827XD
2x32W
2700K
9920
>90
 Microprismatic diffuser Dimmable Dali L55.91"
F1H53.830P
2x32W
3000K
9920
>90
 Opal polycarbonate diffuser On/Off L55.91"
F1H53.830PD
2x32W
3000K
9920
>90
 Opal polycarbonate diffuser Dimmable Dali L55.91"
F1H53.830X
2x32W
3000K
9920
>90
 Microprismatic diffuser On/Off L55.91"
F1H53.830XD
2x32W
3000K
9920
>90
 Microprismatic diffuser Dimmable Dali L55.91"
F1H53.840P
2x32W
4000K
10218
>90
 Opal polycarbonate diffuser On/Off L55.91"
F1H53.840PD
2x32W
4000K
10218
>90
 Opal polycarbonate diffuser Dimmable Dali L55.91"
F1H53.840X
2x32W
4000K
10218
>90
 Microprismatic diffuser On/Off L55.91"
F1H53.840XD
2x32W
4000K
10218
>90
 Microprismatic diffuser Dimmable Dali L55.91"
F1H54.827P
2x38,4W
2700K
11904
>90
 Opal polycarbonate diffuser On/Off L66.93"
F1H54.827PD
2x38,4W
2700K
11904
>90
 Opal polycarbonate diffuser Dimmable Dali L66.93"
F1H54.827X
2x38,4W
2700K
11904
>90
 Microprismatic diffuser On/Off L66.93"
F1H54.827XD
2x38,4W
2700K
11904
>90
 Microprismatic diffuser Dimmable Dali L66.93"
F1H54.830P
2x38,4W
3000K
11904
>90
 Opal polycarbonate diffuser On/Off L66.93"
F1H54.830PD
2x38,4W
3000K
11904
>90
 Opal polycarbonate diffuser Dimmable Dali L66.93"
F1H54.830X
2x38,4W
3000K
11904
>90
 Microprismatic diffuser On/Off L66.93"
F1H54.830XD
2x38,4W
3000K
11904
>90
 Microprismatic diffuser Dimmable Dali L66.93"
F1H54.840P
2x38,4W
4000K
12262
>90
 Opal polycarbonate diffuser On/Off L66.93"
F1H54.840PD
2x38,4W
4000K
12262
>90
 Opal polycarbonate diffuser Dimmable Dali L66.93"
F1H54.840X
2x38,4W
4000K
12262
>90
 Microprismatic diffuser On/Off L66.93"
F1H54.840XD
2x38,4W
4000K
12262
>90
 Microprismatic diffuser Dimmable Dali L66.93"
F1H54.8TWP
2x38,4W
Tunable White

>90
 Opal polycarbonate diffuser On/Off L66.93"
F1H54.8TWX
2x38,4W
Tunable White

>90
 Microprismatic diffuser On/Off L66.93"
F1H55.827P
2x44,8W
2700K
13888
>90
 Opal polycarbonate diffuser On/Off L78.15"
F1H55.827PD
2x44,8W
2700K
13888
>90
 Opal polycarbonate diffuser Dimmable Dali L78.15"
F1H55.827X
2x44,8W
2700K
13888
>90
 Microprismatic diffuser On/Off L78.15"
F1H55.827XD
2x44,8W
2700K
13888
>90
 Microprismatic diffuser Dimmable Dali L78.15"
F1H55.830P
2x44,8W
3000K
13888
>90
 Opal polycarbonate diffuser On/Off L78.15"
F1H55.830PD
2x44,8W
3000K
13888
>90
 Opal polycarbonate diffuser Dimmable Dali L78.15"
F1H55.830X
2x44,8W
3000K
13888
>90
 Microprismatic diffuser On/Off L78.15"
F1H55.830XD
2x44,8W
3000K
13888
>90
 Microprismatic diffuser Dimmable Dali L78.15"
F1H55.840P
2x44,8W
4000K
14304
>90
 Opal polycarbonate diffuser On/Off L78.15"
F1H55.840PD
2x44,8W
4000K
14304
>90
 Opal polycarbonate diffuser Dimmable Dali L78.15"
F1H55.840X
2x44,8W
4000K
14304
>90
 Microprismatic diffuser On/Off L78.15"
F1H55.840XD
2x44,8W
4000K
14304
>90
 Microprismatic diffuser Dimmable Dali L78.15"
F1H56.827P
2x51,2W
2700K
15872
>90
 Opal polycarbonate diffuser On/Off L89.17"
F1H56.827PD
2x51,2W
2700K
15872
>90
 Opal polycarbonate diffuser Dimmable Dali L89.17"
F1H56.827X
2x51,2W
2700K
15872
>90
 Microprismatic diffuser On/Off L89.17"
F1H56.827XD
2x51,2W
2700K
15872
>90
 Microprismatic diffuser Dimmable Dali L89.17"
F1H56.830P
2x51,2W
3000K
15872
>90
 Opal polycarbonate diffuser On/Off L89.17"
F1H56.830PD
2x51,2W
3000K
15872
>90
 Opal polycarbonate diffuser Dimmable Dali L89.17"
F1H56.830X
2x51,2W
3000K
15872
>90
 Microprismatic diffuser On/Off L89.17"
F1H56.830XD
2x51,2W
3000K
15872
>90
 Microprismatic diffuser Dimmable Dali L89.17"
F1H56.840P
2x51,2W
4000K
16348
>90
 Opal polycarbonate diffuser On/Off L89.17"
F1H56.840PD
2x51,2W
4000K
16348
>90
 Opal polycarbonate diffuser Dimmable Dali L89.17"
F1H56.840X
2x51,2W
4000K
16348
>90
 Microprismatic diffuser On/Off L89.17"
F1H56.840XD
2x51,2W
4000K
16348
>90
 Microprismatic diffuser Dimmable Dali L89.17"
F1H56.8TWP
2x51,2W
Tunable White

>90
 Opal polycarbonate diffuser On/Off L89.17"
F1H56.8TWX
2x51,2W
Tunable White

>90
 Microprismatic diffuser On/Off L89.17"
F1H57.827P
2x57,6W
2700K
17856
>90
 Opal polycarbonate diffuser On/Off L100.2"
F1H57.827PD
2x57,6W
2700K
17856
>90
 Opal polycarbonate diffuser Dimmable Dali L100.2"
F1H57.827X
2x57,6W
2700K
17856
>90
 Microprismatic diffuser On/Off L100.2"
F1H57.827XD
2x57,6W
2700K
17856
>90
 Microprismatic diffuser Dimmable Dali L100.2"
F1H57.830P
2x57,6W
3000K
17856
>90
 Opal polycarbonate diffuser On/Off L100.2"
F1H57.830PD
2x57,6W
3000K
17856
>90
 Opal polycarbonate diffuser Dimmable Dali L100.2"
F1H57.830X
2x57,6W
3000K
17856
>90
 Microprismatic diffuser On/Off L100.2"
F1H57.830XD
2x57,6W
3000K
17856
>90
 Microprismatic diffuser Dimmable Dali L100.2"
F1H57.840P
2x57,6W
4000K
18392
>90
 Opal polycarbonate diffuser On/Off L100.2"
F1H57.840PD
2x57,6W
4000K
18392
>90
 Opal polycarbonate diffuser Dimmable Dali L100.2"
F1H57.840X
2x57,6W
4000K
18392
>90
 Microprismatic diffuser On/Off L100.2"
F1H57.840XD
2x57,6W
4000K
18392
>90
 Microprismatic diffuser Dimmable Dali L100.2"
F1H58.827P
2x64W
2700K
19840
>90
 Opal polycarbonate diffuser On/Off L111.22"
F1H58.827PD
2x64W
2700K
19840
>90
 Opal polycarbonate diffuser Dimmable Dali L111.22"
F1H58.827X
2x64W
2700K
19840
>90
 Microprismatic diffuser On/Off L111.22"
F1H58.827XD
2x64W
2700K
19840
>90
 Microprismatic diffuser Dimmable Dali L111.22"
F1H58.830P
2x64W
3000K
19840
>90
 Opal polycarbonate diffuser On/Off L111.22"
F1H58.830PD
2x64W
3000K
19840
>90
 Opal polycarbonate diffuser Dimmable Dali L111.22"
F1H58.830X
2x64W
3000K
19840
>90
 Microprismatic diffuser On/Off L111.22"
F1H58.830XD
2x64W
3000K
19840
>90
 Microprismatic diffuser Dimmable Dali L111.22"
F1H58.840P
2x64W
4000K
20436
>90
 Opal polycarbonate diffuser On/Off L111.22"
F1H58.840PD
2x64W
4000K
20436
>90
 Opal polycarbonate diffuser Dimmable Dali L111.22"
F1H58.840X
2x64W
4000K
20436
>90
 Microprismatic diffuser On/Off L111.22"
F1H58.840XD
2x64W
4000K
20436
>90
 Microprismatic diffuser Dimmable Dali L111.22"
